| MODEL | CAPACITY | CONTAINER | WARRANTY | DIMENSION | ||
|---|---|---|---|---|---|---|
| FOR SOLAR APPLICATION | LENGTH | WIDTH | HEIGHT | |||
| OBL1024TT | 12V100AH@C20 | IT 400 | 24+24* | 510 | 190 | 350 |
| OBL1524TT | 12V150AH@C20 | IT 500 | 24+24* | 505 | 190 | 415 |

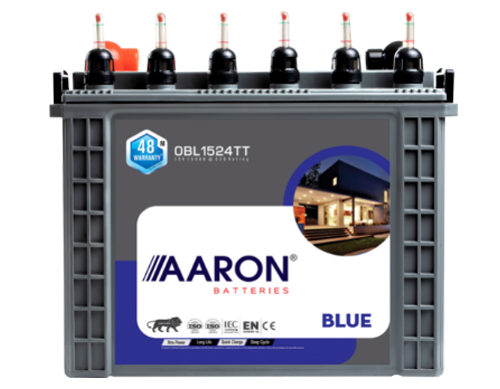

Aaron Blue

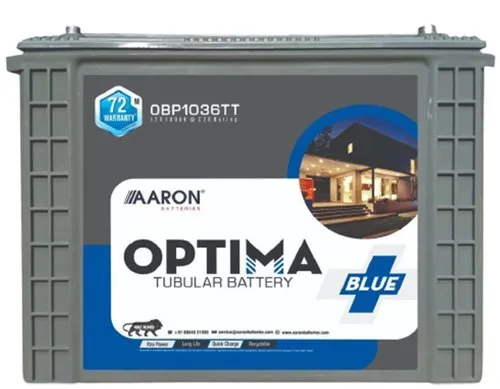

Aaron Blue+
| MODEL | CAPACITY | CONTAINER | WARRANTY | DIMENSION | ||
|---|---|---|---|---|---|---|
| LENGTH | WIDTH | HEIGHT | ||||
| OBP1536TT | 12V150AH@C20 | IT 500 | 36+36* | 505 | 190 | 415 |
| OBP2036TT | 12V200AH@C20 | IT 500 | 36+36* | 505 | 190 | 415 |
| OBP2236TT | 12V220AH@C20 | IT 500 | 36+36* | 505 | 190 | 415 |
| OBP2436TT | 12V240AH@C20 | IT 500 | 36+36* | 505 | 190 | 415 |
| OBP2636TT | 12V260AH@C20 | IT 500 | 36+36* | 505 | 190 | 415 |
| MODEL | CAPACITY | CONTAINER | WARRANTY | DIMENSION | ||
|---|---|---|---|---|---|---|
| LENGTH | WIDTH | HEIGHT | ||||
| OPTO636ST | 12V60AH@C20 | N100 | 36+36* | 410 | 175 | 250 |
| OPT1136ST | 12V110AH@C20 | N200J | 36+36* | 518 | 275 | 288 |
| OPT1336ST | 12V135AH@C20 | N200J | 36+36* | 518 | 275 | 288 |
| OPT1636ST | 12V160AH@C20 | N200J | 36+36* | 518 | 275 | 288 |
| OPT1836ST | 12V180AH@C20 | N200J | 36+36* | 518 | 275 | 288 |
| OPT1140TT | 12V110AH@C20 | IT500 | 40+36* | 505 | 190 | 415 |
| OPT1340TT | 12V135AH@C20 | IT500 | 40+36* | 505 | 190 | 415 |
| OPT1540TT | 12V150AH@C20 | IT500 | 40+36* | 505 | 190 | 415 |
| OPT1640TT | 12V165AH@C20 | IT500 | 40+36* | 505 | 190 | 415 |
| OPT1840TT | 12V180AH@C20 | IT500 | 40+36* | 505 | 190 | 415 |
| OPT2040TT | 12V200AH@C20 | IT500 | 40+36* | 505 | 190 | 415 |
| OPT2240TT | 12V220AH@C20 | IT500 | 40+36* | 505 | 190 | 415 |
| OPT2440TT | 12V240AH@C20 | IT500 | 40+36* | 505 | 190 | 415 |
| OPT2740TT | 12V270AH@C20 | IT500 | 40+36* | 505 | 190 | 415 |

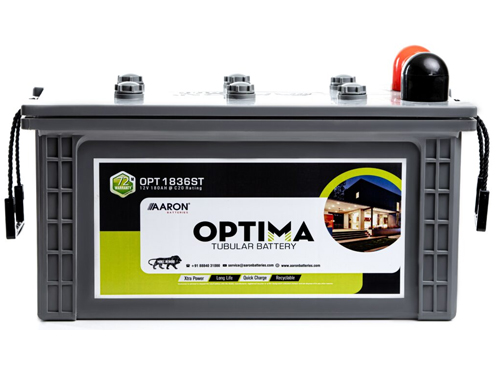

Aaron Optima

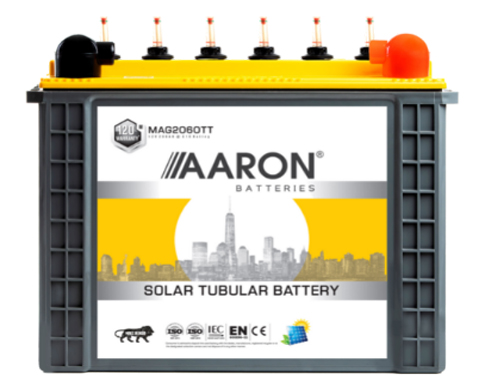

Aaron Magna
| MODEL | CAPACITY | CONTAINER | WARRANTY | DIMENSION | |||
|---|---|---|---|---|---|---|---|
| FOR UPS APPLICATION | FOR SOLAR APPLICATION | LEMGTH | WIDTH | HEIGHT | |||
| MAGO236ST | 12V20AH@C10 | N50 | 36 | 36+36* | 260 | 170 | 225 |
| MAGO460ST | 12V40AH@C10 | N100 | 36 | 60+60* | 410 | 175 | 250 |
| MAGO660ST | 12V60AH@C10 | N100J | 36 | 60+60* | 410 | 175 | 275 |
| MAGO760ST | 12V75AH@C10 | N100J | 36 | 60+60* | 410 | 175 | 275 |
| MAG1060TT | 12V100AH@C10 | IT500 | 36 | 60+60* | 505 | 190 | 415 |
| MAG1560TT | 12V150AH@C10 | IT500 | 36 | 60+60* | 505 | 190 | 415 |
| MAG2060TT | 12V200AH@C10 | IT500 | 36 | 60+60* | 505 | 190 | 415 |
| MODEL | CAPACITY | CONTAINER | WARRANTY | DIMENSION | ||
|---|---|---|---|---|---|---|
| LENGTH | WIDTH | HEIGHT | ||||
| OPP1O50TT | 12V100AH@C20 | IT 500 | 50+50* | 505 | 190 | 415 |
| OPP1550TT | 12V150AH@C20 | IT 500 | 50+50* | 505 | 190 | 415 |

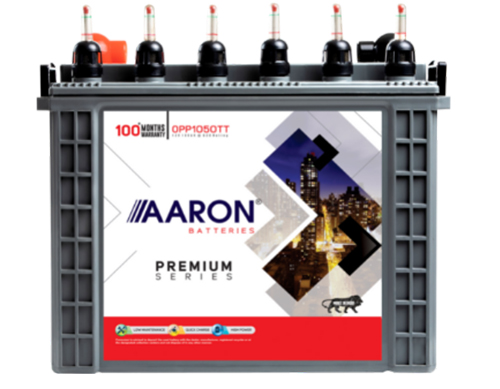

Aaron Premium

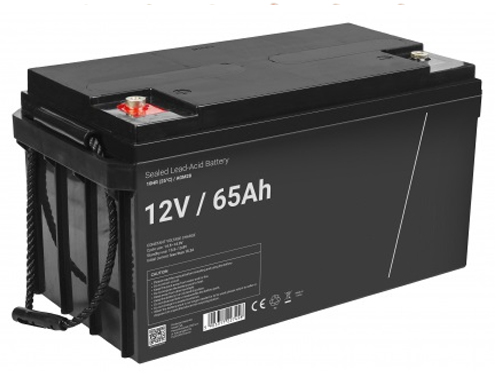

Aaron VRLA
| Battery Type | Nominal Voltage (V) | Rated Capacity(Ah) @ 27°C | Dimensions (mm) +2 mm | Weight (Kg) (+-5%) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20Hr 1.75 V/Cell | 10Hr 1.75 V/Cell | 5Hr 1.75 V/Cell | 3Hr 1.75 V/Cell | 1Hr 1.75 V/Cell | 30 Mins 1.60 V/Cell | Length | Width | Height upto lid top | Overall Height | |||
| A12-7 | 12 | 7 | 6.48 | 5.9 | 5.25 | 4.2 | 3.4 | 151 | 66 | 94 | 100 | 2.4 |
| A12-12 | 12 | 12 | 11.10 | 10.2 | 9.0 | 7.2 | 5.9 | 151 | 98 | 94 | 100 | 4.0 |
| A12-18 | 12 | 18 | 15.73 | 14.4 | 12.7 | 10.2 | 8.4 | 181 | 78 | 166 | 166 | 5.3 |
| A12-26 | 12 | 26 | 24.05 | 22.1 | 19.5 | 15.5 | 12.9 | 166 | 175 | 125 | 125 | 9.0 |
| A12-42 | 12 | 42 | 38.85 | 35.7 | 31.5 | 25.0 | 19.8 | 197 | 166 | 176 | 176 | 13.5 |
| A12-65 | 12 | 65 | 60.13 | 55.2 | 48.7 | 39.0 | 32.3 | 350 | 166 | 175 | 175 | 22.5 |
| A12-75 | 12 | 75 | 69.38 | 63.7 | 56.2 | 45.0 | 37.3 | 260 | 168 | 223 | 223 | 23.5 |
| A12-100 | 12 | 100 | 92.50 | 85.0 | 75.0 | 60.0 | 49.7 | 330 | 173 | 219 | 245 | 31.0 |
| A12-120 | 12 | 120 | 111.00 | 102.0 | 90.0 | 72.0 | 59.6 | 406 | 173 | 235 | 235 | 33.5 |
| A12-150 | 12 | 150 | 138.75 | 127.5 | 112.5 | 90.0 | 74.5 | 483 | 170 | 240 | 240 | 46.0 |
| A12-200 | 12 | 200 | 185.10 | 170 | 150.0 | 120.0 | 99.4 | 522 | 240 | 219 | 245 | 64.0 |
